Schlüter-KERDI-DRAIN is a drainage system designed for a simple and secure connection of waterproofing systems to the building's drainage system. In accordance with the ZDB technical data sheet, these waterproofing systems are an approved technical solution.

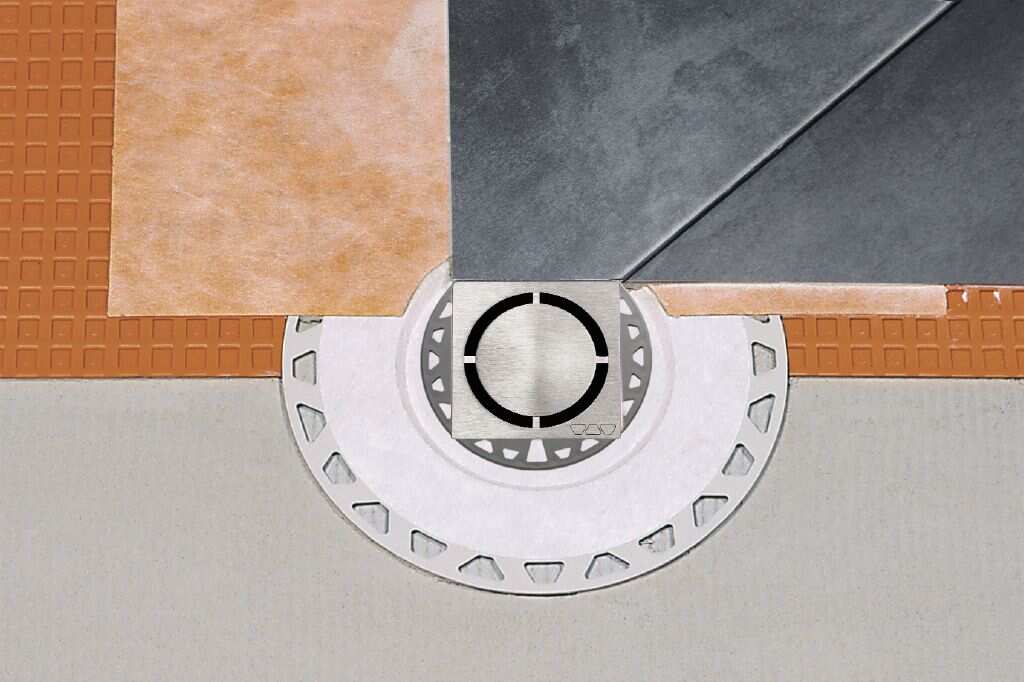

The Schlüter-KERDI sealing material supplied as a waterproof connection is glued to the perforated trapezoidal connection plate covered with a geotextile to create a joint waterproofing.

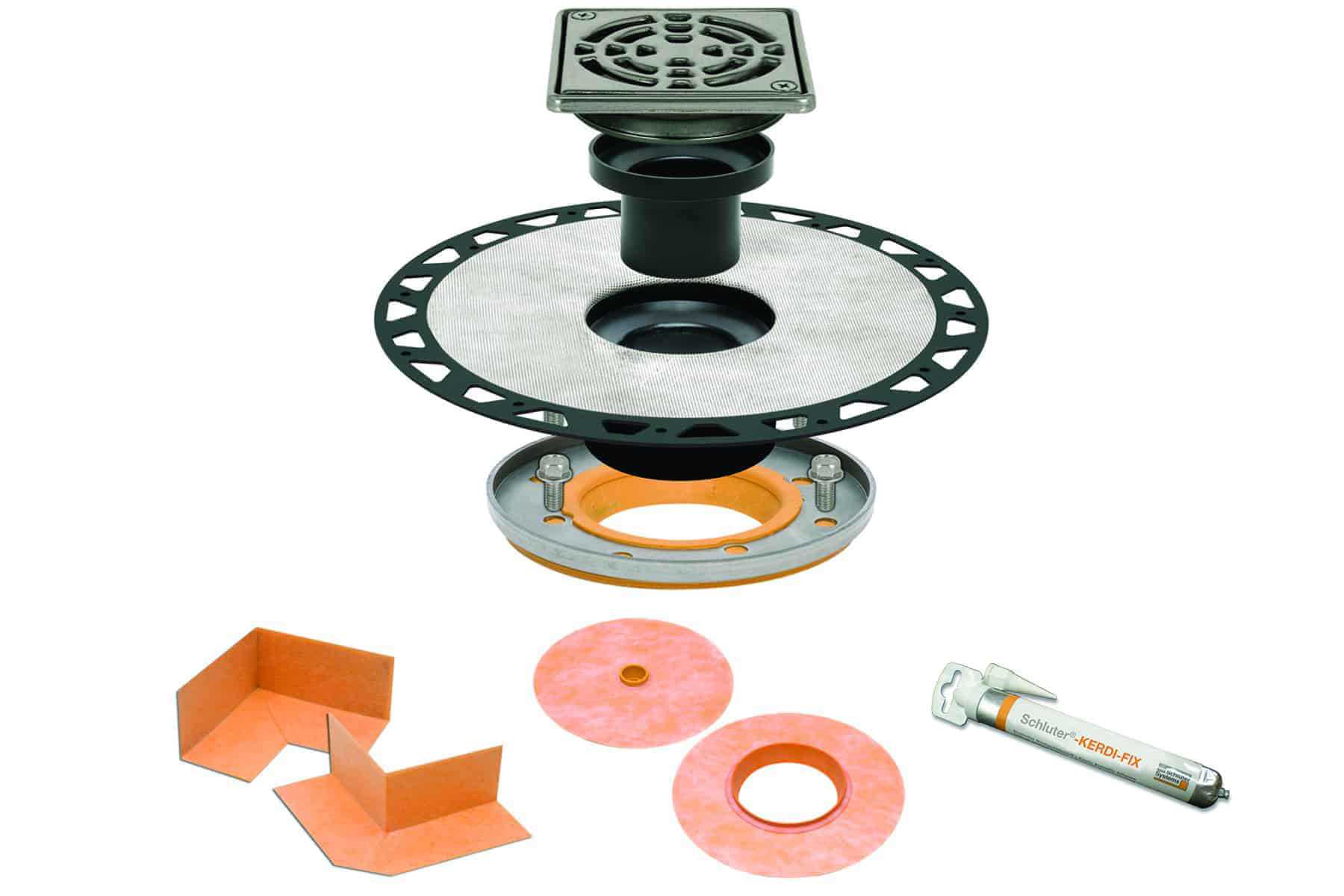

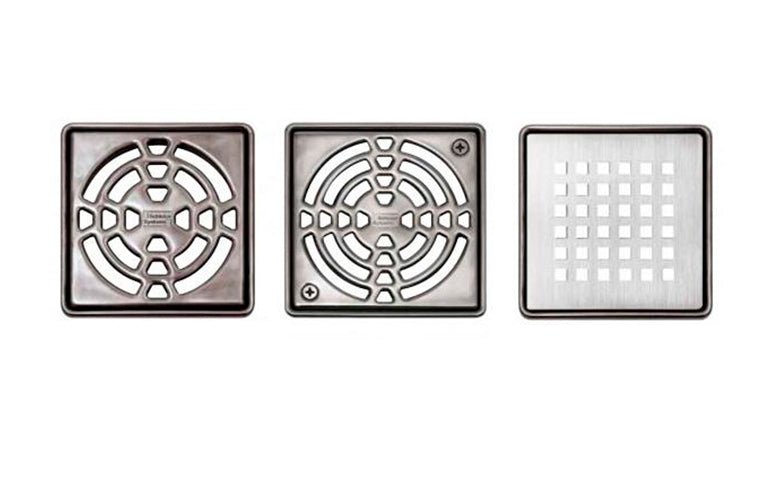

Schlüter-KERDI-DRAIN drains have a modular design and can be individually combined to suit any requirement. The different grate designs can be combined with different vertical or horizontal drain boxes, with or without an odour trap.

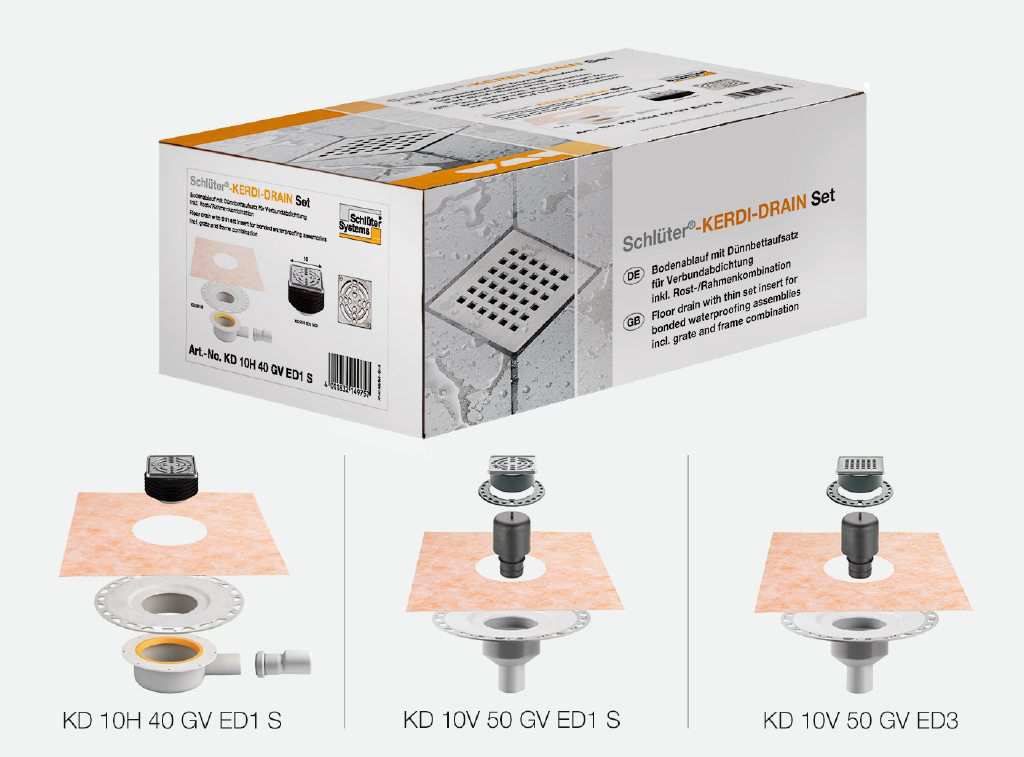

KD 10 H40 GV ED1 S contains:
- Schlüter ® -KERDI-DRAIN-BASE DN 40/50, horizontal ground water drainage for thin-set mortar (drainage capacity 0.4 l/s), min. construction height 75 (70) mm

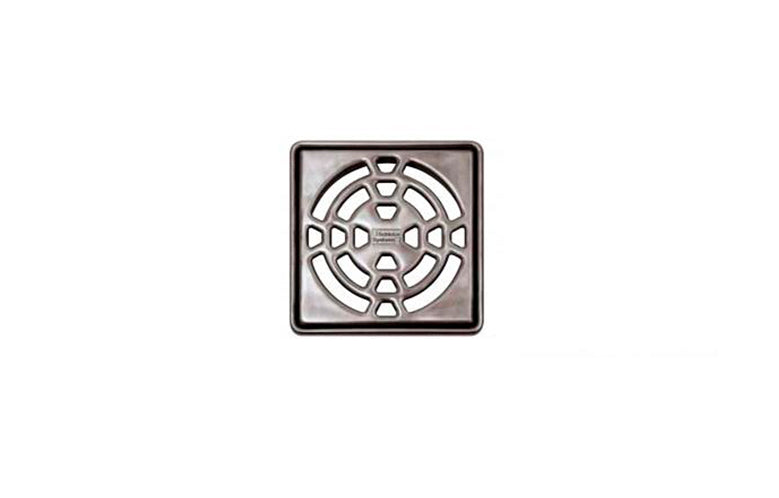

- grille and frame combination with 1 stainless steel decorative grille and 10 x 10 cm screws
- grill with siphon and lip-shaped waterproofing
KD 10 V50 GV ED1 S contains:
- Schlüter ® -KERDI-DRAIN DN 50, vertical drainage of water in the ground for thin-set mortar (drainage capacity 0.6 l/s)
- integrated siphon

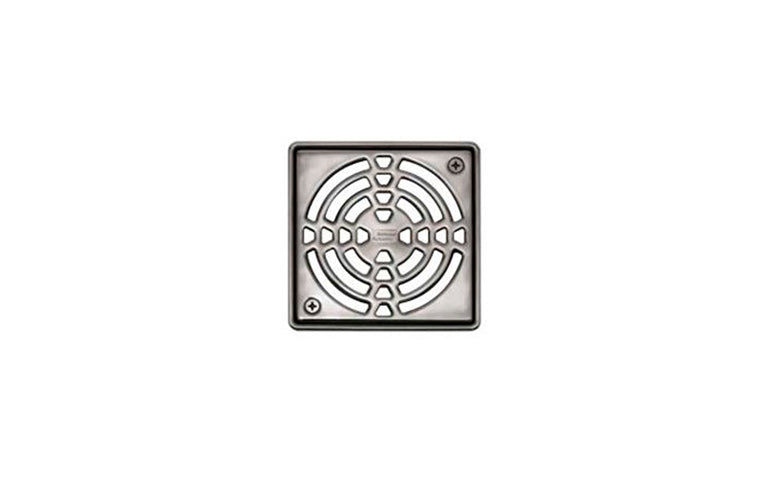

- grille and frame combination with 1 stainless steel decorative grille and 10 x 10 cm screws
- incl. frame extension, height fixing and dirt collection filter
KD 10 V50 GV ED3 contains:
- Schlüter ® -KERDI-DRAIN DN 50, vertical drainage of water in the ground for thin-set mortar (drainage capacity 0.6 l/s)
- integrated siphon

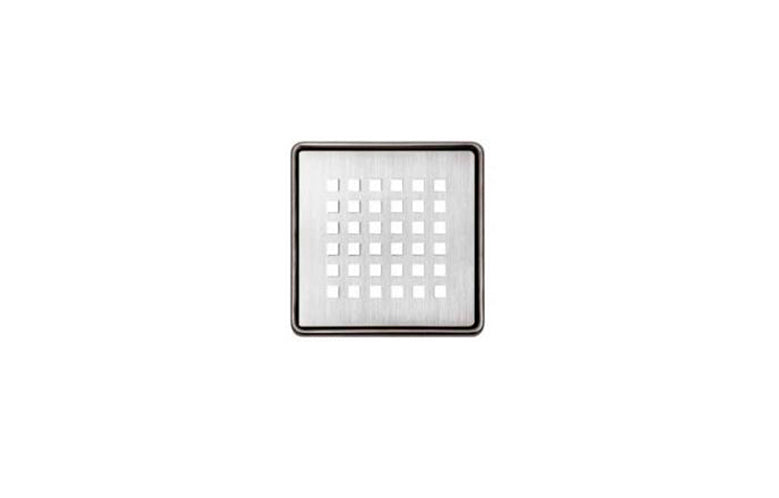

- grill and frame combination with decorative grill 3 in brushed stainless steel 10 x 10 cm
- incl. frame extension, height fixing and dirt collection filter
Notes:
Schlüter-KERDI-DRAIN does not require any special care or maintenance. Stainless steel surfaces exposed to the open air or aggressive substances should be cleaned regularly using a mild cleaning agent. If necessary, we recommend using the stainless steel polish Schlüter-CLEAN-CP.
Regular cleaning not only helps to keep stainless steel looking clean, but also reduces the risk of corrosion. All cleaning agents should be free of hydrochloric and hydrofluoric acid. The stainless steel grate and siphon can be removed to clean the toilet tank and drain pipes.
