Schlüter®-DITRA-HEAT DUO

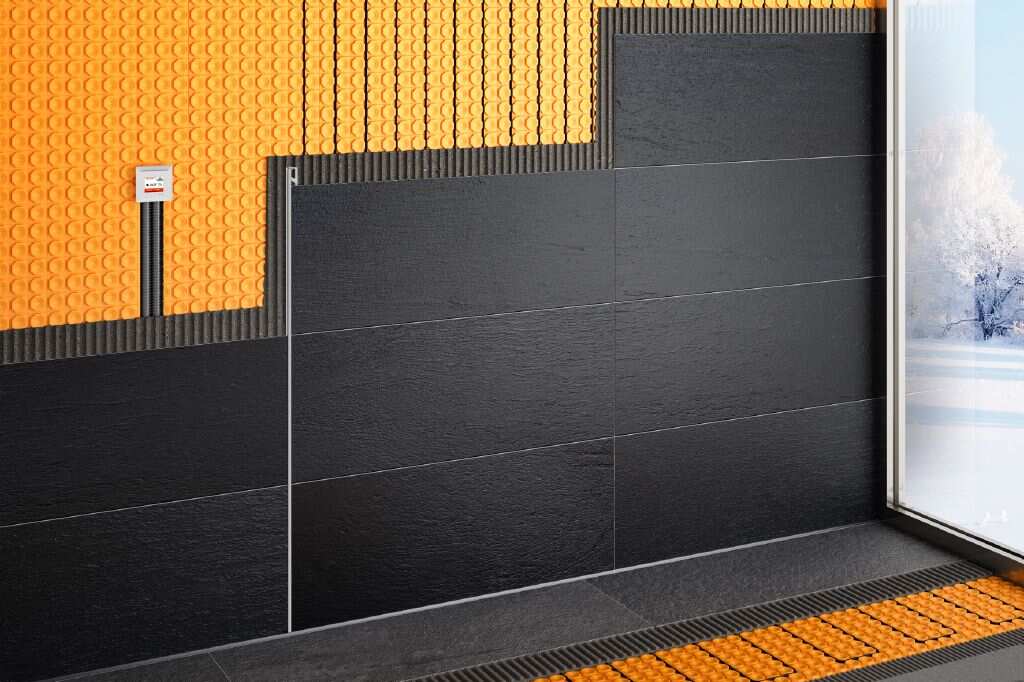

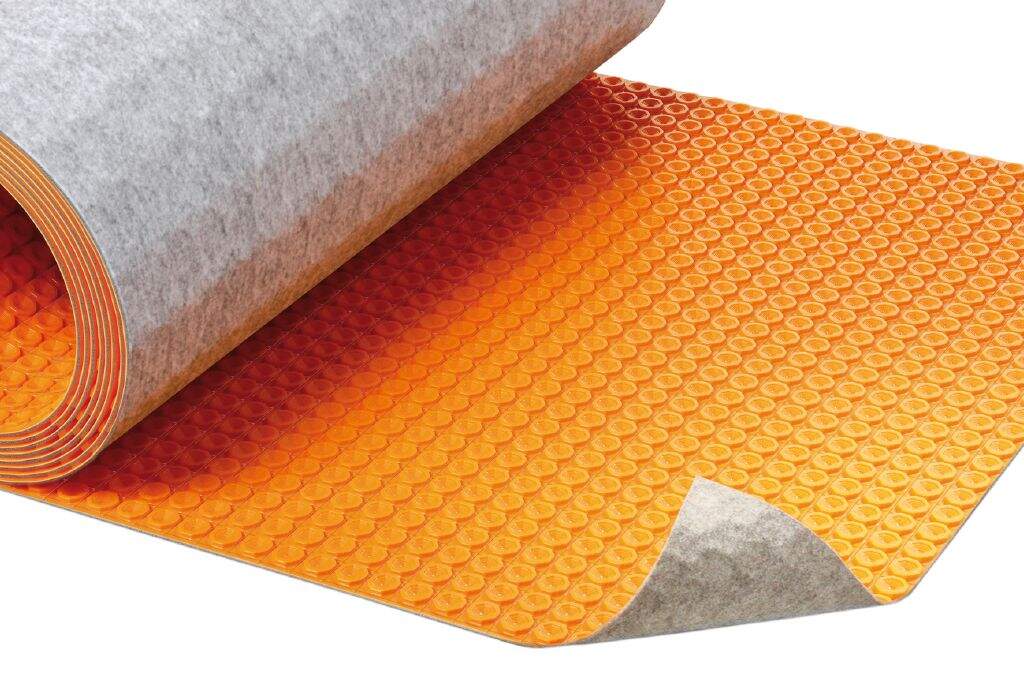

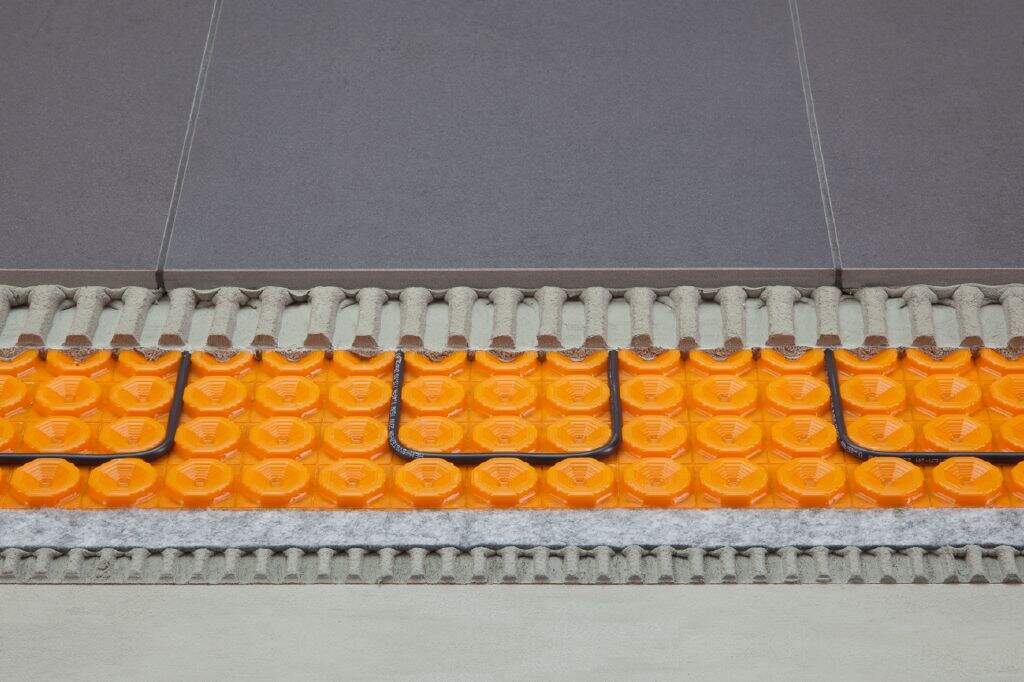

Schlüter ^® -DITRA-HEAT-DUO is a polypropylene membrane with a cut-out cone structure, with a 2 mm thick geotextile on the back side. It is the universal support for ceramic tiles with waterproofing, decoupling, vapor pressure compensation functions and can integrate heating cables compatible with the system for floor and wall heating.

In addition to acting as acoustic insulation, the special geotextile favors faster heating behavior of floor and wall coverings.

Technical Data

Rated voltage
230 volts

Power
136 W/m2 (range: every 3 nodules ≙ 9 cm)
200 W/m2 (range: every 2 nodules ≙ 6 cm)

Positive temperature coefficient connection line
1 x 4.00 m

Minimum placement temperature
5°C

Smaller radius of curvature
6 x dA

Resistance Tolerance
-5% / +10% at 20°C

Tested according to VDE
IEC 60800 class M1

Cold/hot transition
continuous, without retraction technology

Isolation
fluorinated plastic

Degree of protection
IPX7
