Schluter

Schlüter®-KERDI-LINE-H

Schlüter®-KERDI-LINE-H

Regular price €195,35
Regular price €0,00 Sale price €195,35
Sale Sold out
Shipping calculated at checkout.

For Special Budgets click here

20 in stock

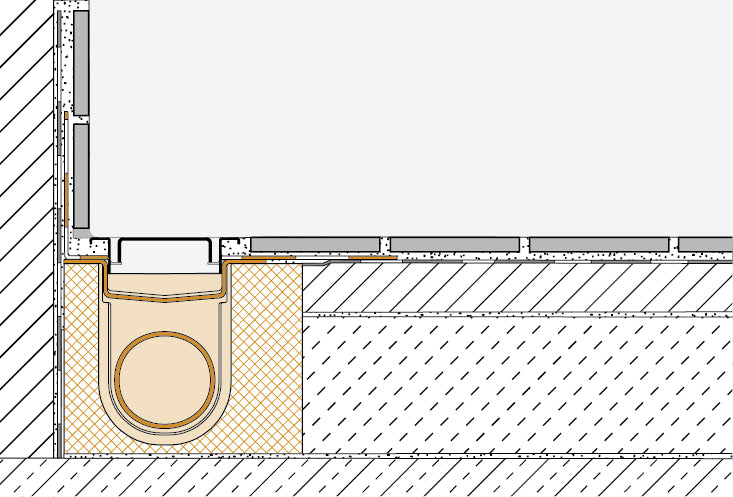

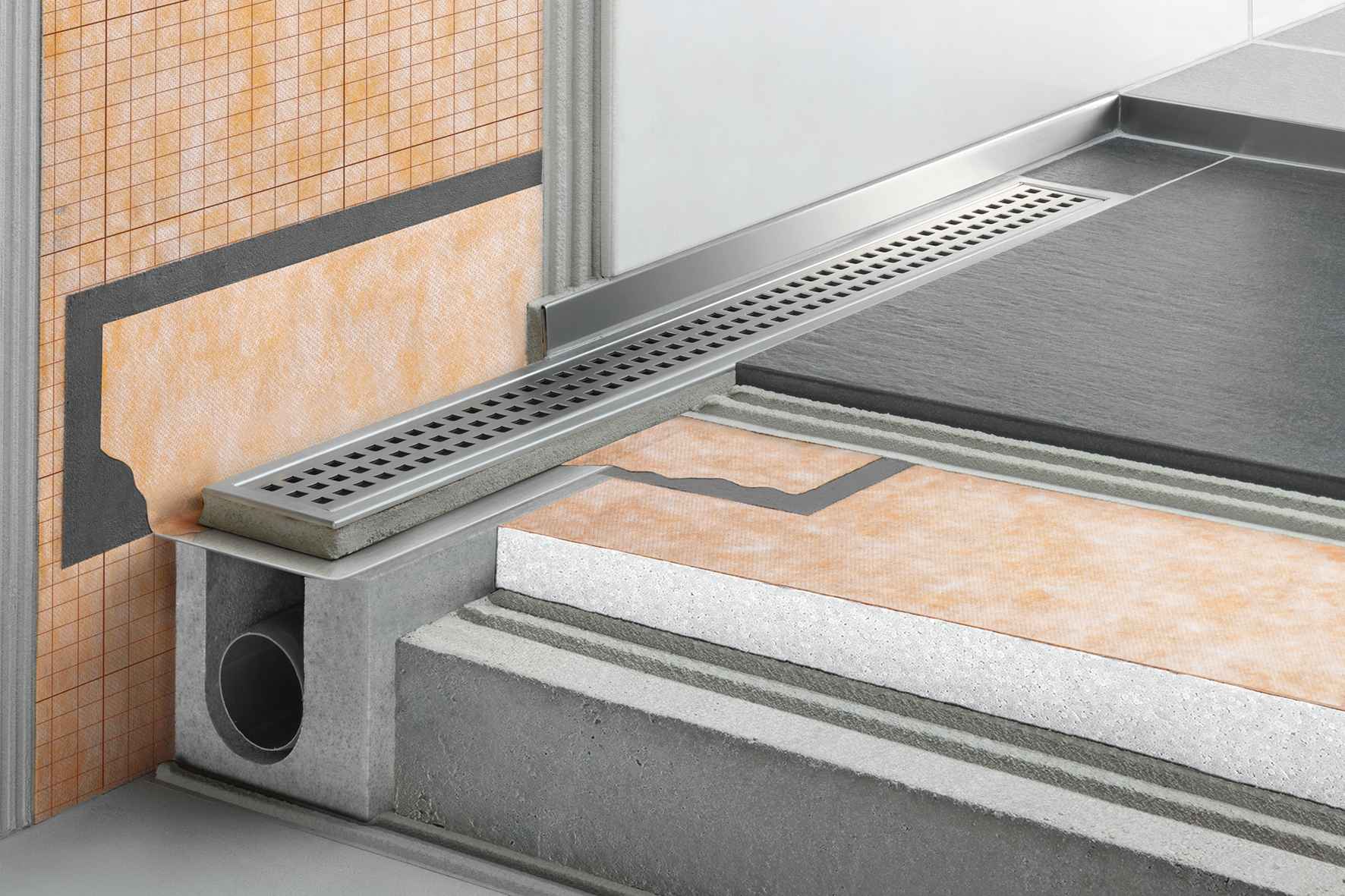

Schlüter ® -KERDI-LINE-H is a complete set for floor-level in-line showers with a horizontal drain. It can be universally used for central mounting on a surface or wall area. A Schlüter ® -KERDI gasket is factory glued to the connecting flange surrounding the channel body . This serves to securely connect the channel body to the waterproofing joint in the floor area of ​​walls.

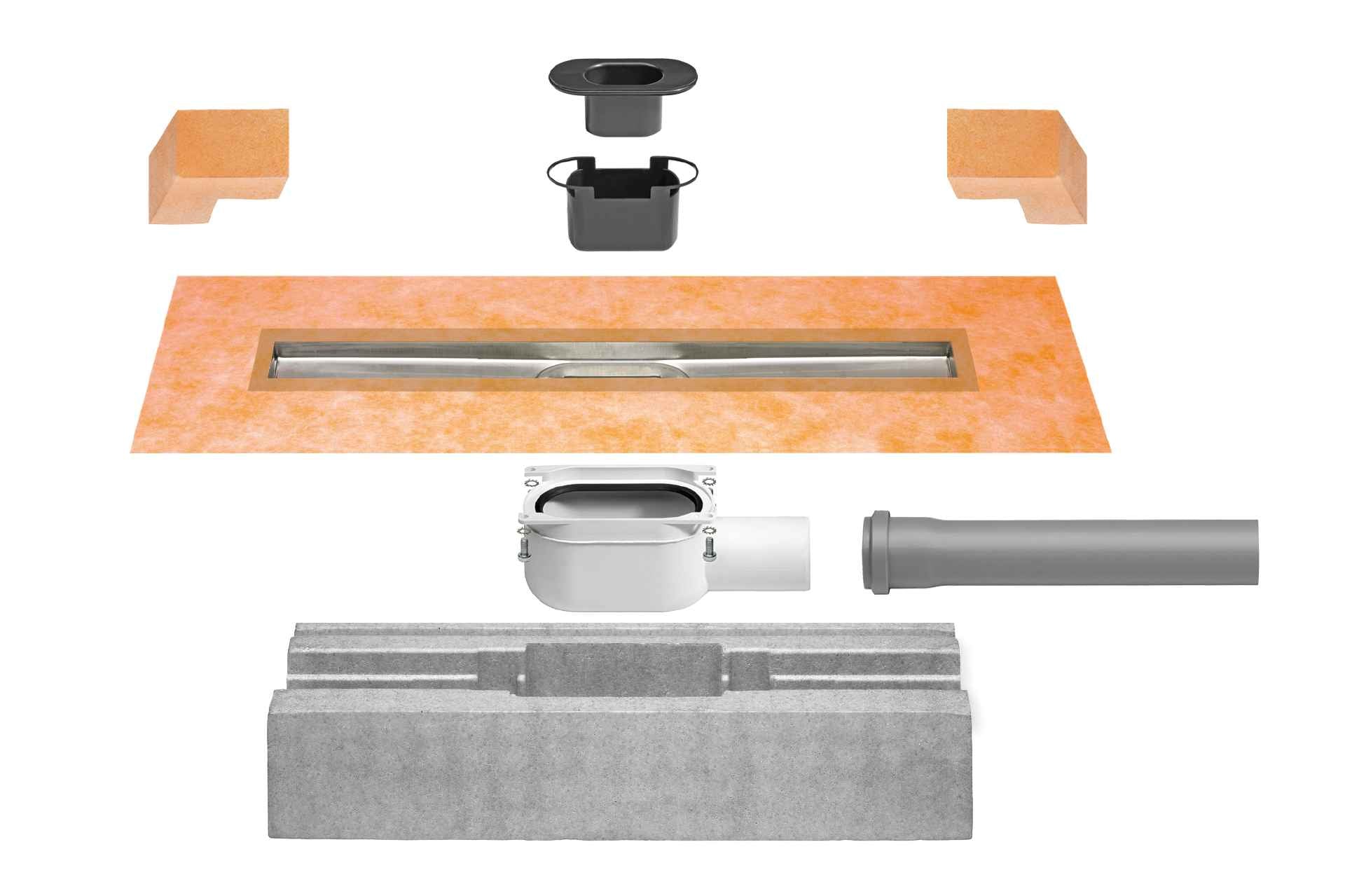

Set components :

  • corner seal (for sidewall connection)
  • two-component siphon
  • channel body with sealing gasket
  • Drain pipe
  • drain box
  • channel support
  • transition DN 40 to DN 50 (only for KERDI-LINE-H 40)

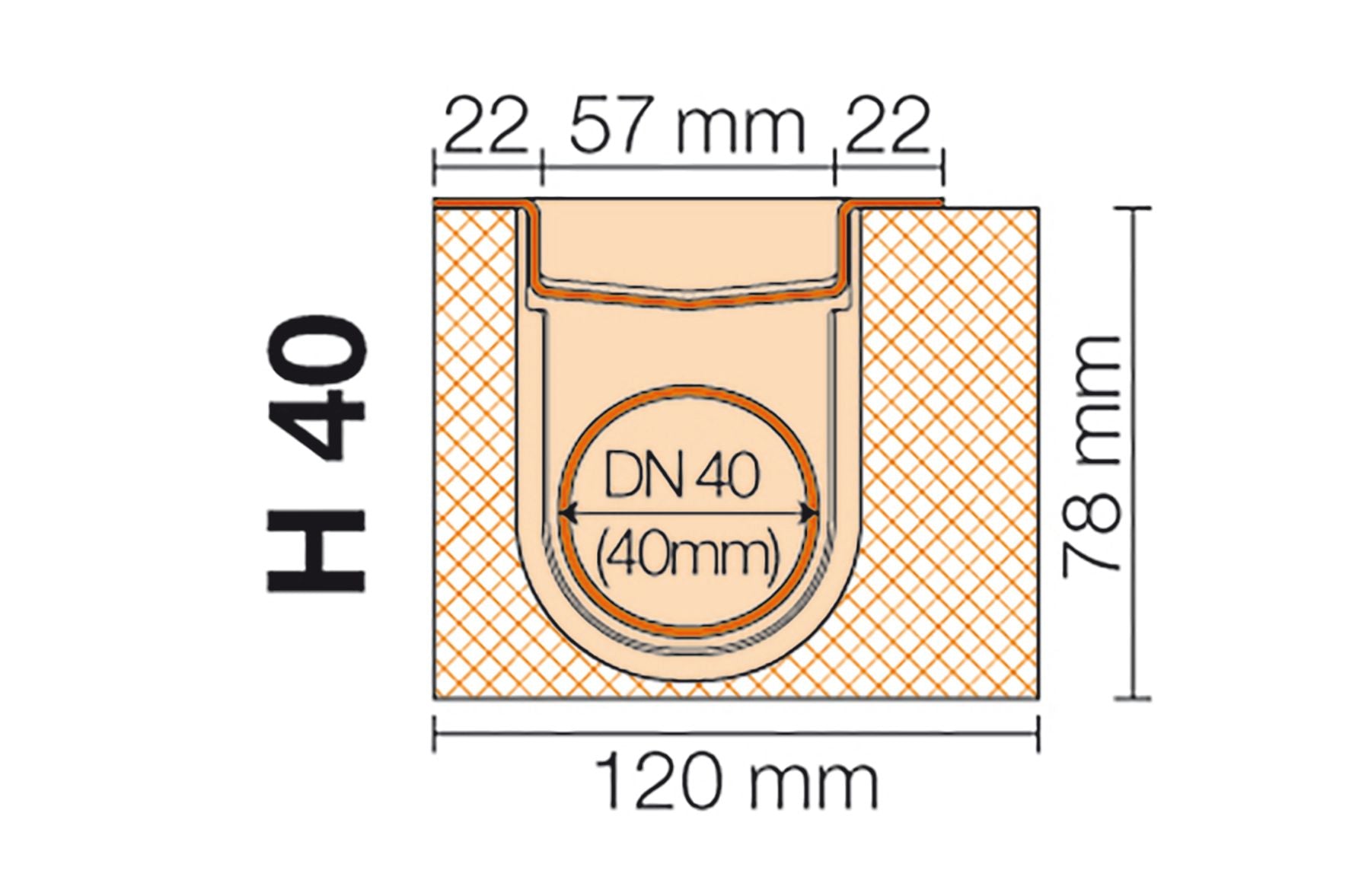

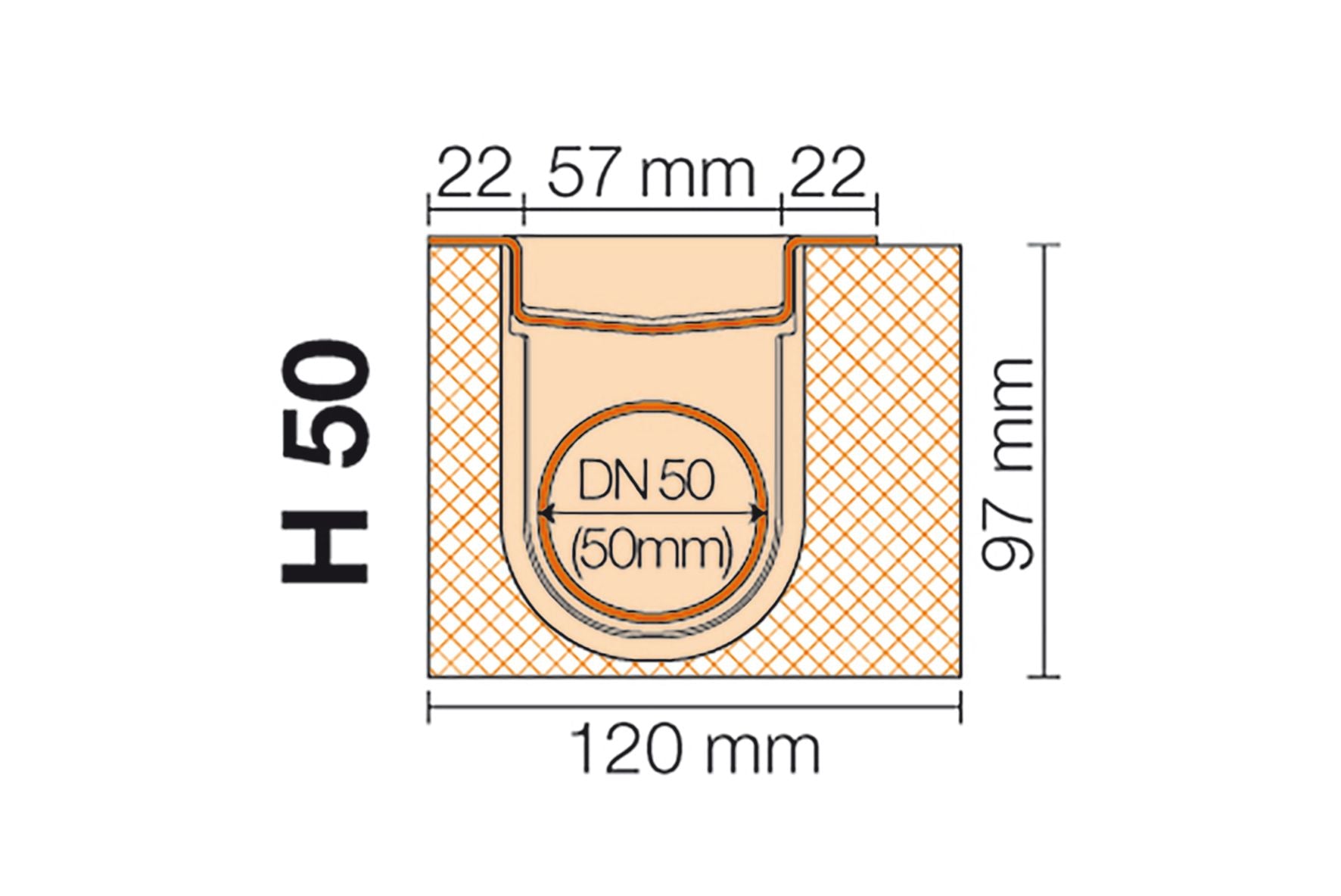

Technical Data:

Flow DN 40 DN 50
Flow capacity 0.5 l/s 0.6 l/s
Mounting height 78mm 97mm
Cover width incl. frame 74mm 74mm

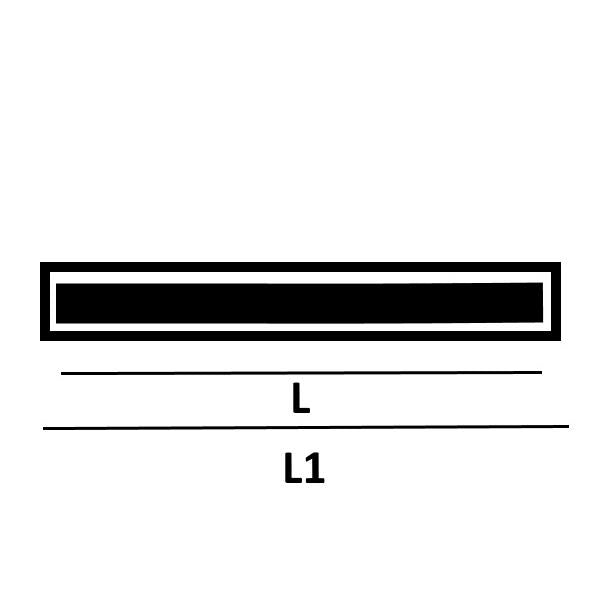

Lengths 50-180cm 50-180cm
