Schlüter®-KERDI-LINE-VARIO-H 40
Schlüter®-KERDI-LINE-VARIO-H 40
Couldn't load pickup availability
For Special Budgets click here
100 in stock

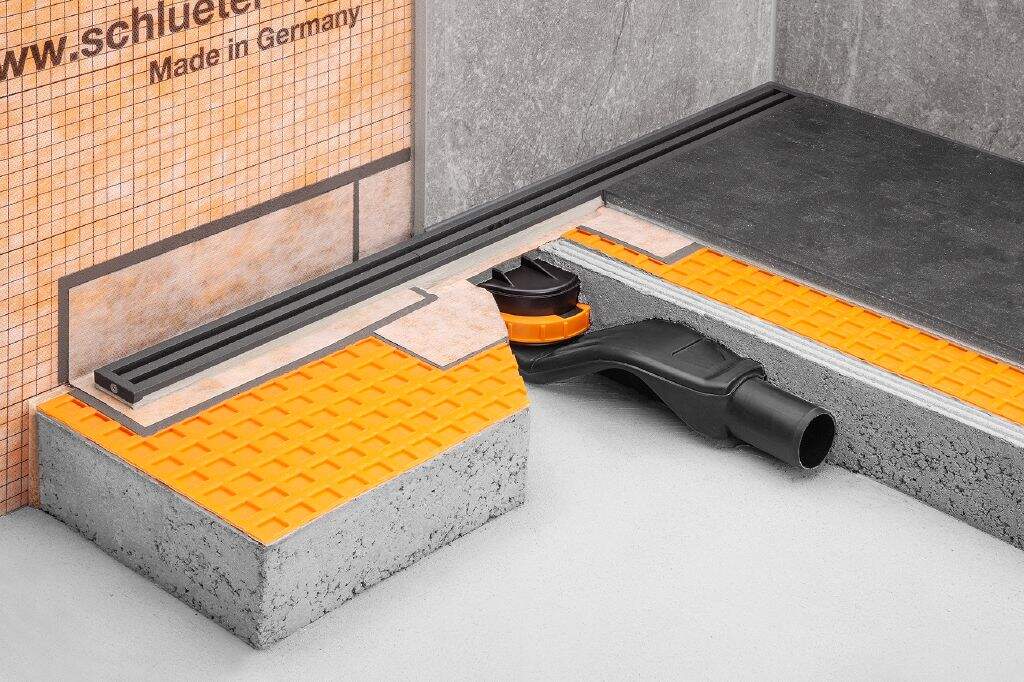

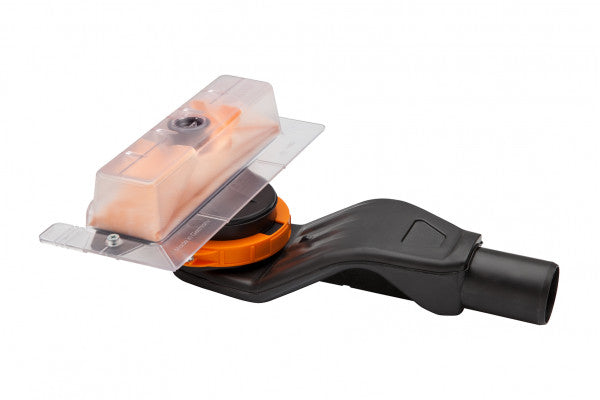

Schlüter-KERDI-LINE-VARIO-H 40 is a complete set for floor-level shower trays. It consists of a drain adapter with integrated KERDI flexible sealing sleeve. The adapter is fixed and waterproof at the factory in the corrugated drain equipped with a seal to ensure a particularly low mounting height. Furthermore, the adapter is protected by a fixing ring. KERDI-LINE-VARIO-H 40 is universally used for centralized surface mounting, but especially in the wall area. The high flow velocity in the drain box has a self-cleaning effect. The noise protection element included in the set reliably prevents the propagation of noise and can also be used as a positioning aid for direct wall mounting.

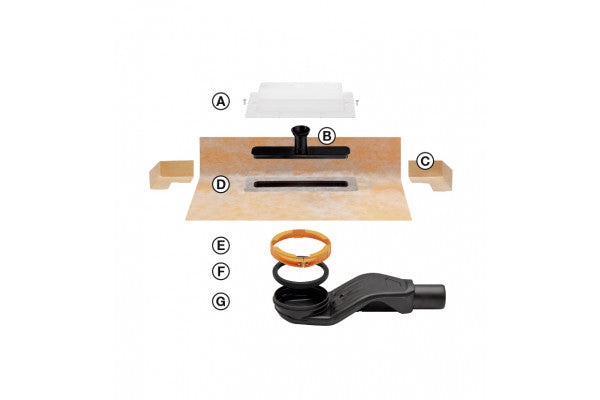

Set components :
- construction protective cover
- water check nozzle
- corner seal (for vertical side wall)
- gutter adapter with flexible sealing sleeves
- anal fixation
- seal
- DN 40 drain box with siphon
- noise protection element
- adapter DN 40/50

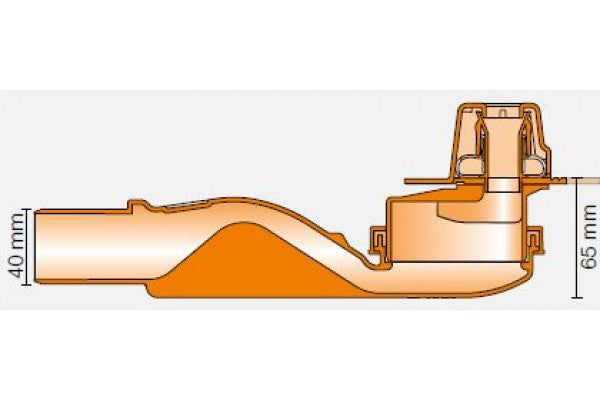

Technical Data:
- Drainage: DN 40
- Drainage capacity: *
- Water retention height: 25 mm
- Mounting height: 65 mm
